调心托辊组的作用为:当输送带偏离中心线时,调心托辊在载荷的作用下沿中轴线产生转动,使输送带回到中心位置,调心托辊的区别在于其具有极强的防止输送带跑偏的能力。对于较长的输送机来说是必须设置的托辊。

   调心托辊可分为:平行、鼓形和圆锥型三种。

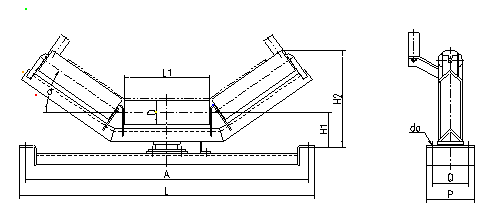

   槽形调心托辊标记方法:
   TS
<探索>-CA<槽形调心托辊>-40<带宽400mm>-35<35°槽角>-1)<辊径和轴承型号>



带宽型号辊子轴承型号ALH1H2PQd0重量(千克)
辊子型号DL135º45º35º45º
400TS-CA-40CR-89-204-14589145204640690125256276190140M126769
450TS-CA-45CR-89-204-16589165204690740125267290190140M127274
500TS-CA-50CR-89-204-18089180204740800135.5300328170130M127577
600TS-CA-60CR-89-204-21089210204840890140308337200150M128082
650TS-CA-65CR-89-204-25089250204890950135.5329364170130M128587
750TS-CA-75CR-114.3-205-265114.326520510401090150363398210160M12105107
……
……
2400TS-CA-240-1CR-159-308-90015990030830203100285.58851006250190M20380390
TS-CA-240-2CR-159-309-90015990030930203100285.58851006250190M20400408
TS-CA-240-3CR-165.2-308-900165.290030830203100285.48871008250190M20385395
TS-CA-240-4CR-165.2-309-900165.290030930203100285.48871008250190M20405415
TS-CA-240-5CR-194-308-900194900308302031002939071026250190M20420430
TS-CA-240-6CR-194-310-900194900310302031003139271046250190M20440450

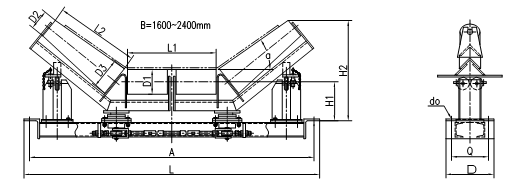

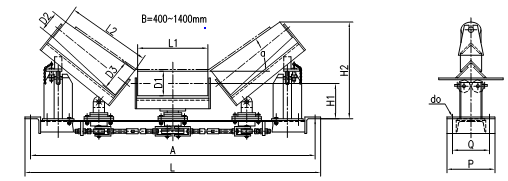

   锥形上调心托辊标记方法:

   TS<探索>-CCA<锥形上调心托辊>-40<带宽400mm>35º<35º槽角>-(1)<辊径和轴承型号>

带宽型号辊子轴承型号ALH1H2PQd0重量(千克)
D1L1D2D3L235º45º35º45º
400TS-CCA-408910089118210204640690125290318190140M127073
450TS-CCA-458914589118210204690740125296324190140M127578
500TS-CCA-508918089118210204740800135.5306334170130M128083
600TS-CCA-608921089118210204840890140311339200150M128588
650TS-CCA-658921089122240204890950135.5397325357170M129093
750TS-CCA-75114.32508913330420510401090150397437210160M12110113
……
……
2400TS-CCA-240-115980013321990030830203100285.59061013340190M20370385
TS-CCA-240-215980013321990031030203100285.59061013340190M20390405
TS-CCA-240-3165.280013321990030830203100285.49061013340190M20375390
TS-CCA-240-4165.280014021990031030203100285.49061013340190M20395410
TS-CCA-240-5194800140219900308302031002939241031340190M20430445
TS-CCA-240-6194800140219900310302031003139141021340190M16450465

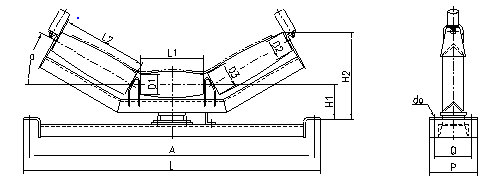

   鼓形调心托辊标记方法

   TS<探索>-CDA<鼓形调心托辊>-40<带宽400mm>-35<35º槽角>-(1)<l辊径和轴承型号>

带宽型号辊子轴承型号ALH1H2PQd0重量(千克)
D1L1D2D3L235º45º35º45º
400TS-CDA-408912089110180204640690125265.2301190140M127073
450TS-CDA-458914089110180204690740125265.2301190140M127578
500TS-CDA-508916089110200204740800135.5300325170130M128085
600TS-CDA-608918089110200204840890140306329.5200150M128590
650TS-CDA-658921089110250204890950135.5330361170130M129095
750TS-CDA-75892508911030020510401090150350411210160M12100105
……
2200TS-CDA-22015974015919680030627202800238777890340190M16390400
750TS-CDA-24015980015919690030830203100313843.51036340190M20410420
